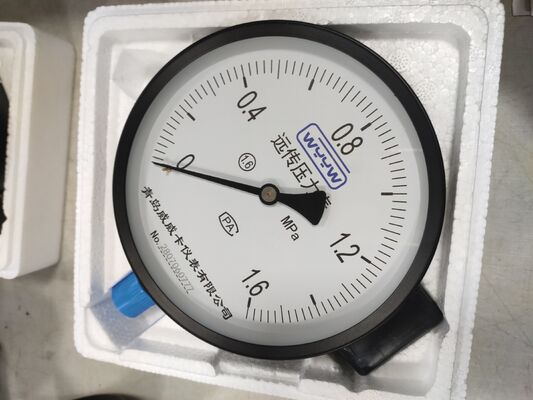

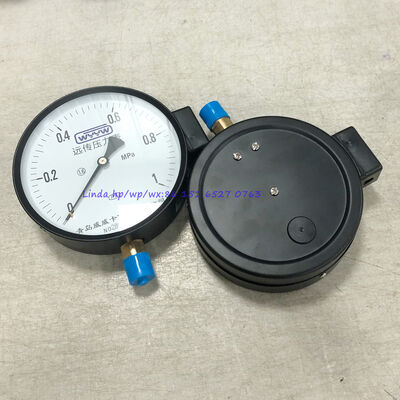

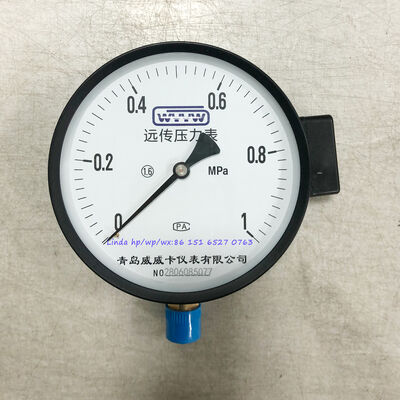

6-inch Dial Remote Reading Pressure Gauge with 0-1.6MPa Range and 1.6 Accuracy Class for Remote Monitoring

Productomschrijving

6" 150mm Remote Reading Pressure Gauge | 0-1.6MPa | 1.6 Accuracy Class

Centralized Monitoring with Precision

Our 6-inch (150mm) Remote Reading Pressure Gauge is engineered for applications requiring pressure monitoring from a distance. With a 0-1.6MPa range and 1.6 accuracy class, this instrument delivers reliable, precise readings that can be transmitted to control rooms, panels, or digital displays. Ideal for monitoring fuel, oil, or water systems remotely, this gauge provides the clarity and accuracy essential for critical industrial and commercial operations.

Key Features & Benefits

Large 6-Inch Dial for Maximum Readability: The 150mm dial enables clear, precise readings from a distance, perfect for control panels and centralized monitoring stations.
High Accuracy Performance: With a 1.6 accuracy class, this remote reading pressure gauge provides dependable measurements for process control and safety monitoring.
Versatile Remote Monitoring Capability: Configured to function as a remote fuel pressure gauge, remote oil pressure gauge, or remote water pressure gauge with appropriate signal outputs (4-20mA, 0-10V, etc.).
Dual Functionality: Combines traditional local dial for on-site verification with electrical signal output for remote data acquisition and control system integration.
Robust Industrial Construction: Built to withstand industrial environments with durable materials and reliable long-term performance.

Technical Specifications

Specification	Detail
Dial Size	6 inches / 150 mm
Pressure Range	0-1.6MPa (Custom ranges available)
Accuracy Class	1.6 (Standard)
Signal Output	4-20mA, 0-10V, RS485 (Selectable)
Local Display	Analog dial with high-contrast markings
Process Connection	1/4" NPT, 1/2" NPT, or G1/2
Case Material	Stainless Steel or Phenolic
Electrical Connection	Terminal block or cable gland

Application-Specific Solutions

Remote Fuel Pressure Gauge: Monitor diesel, gasoline, or other fuel pressures in generators, boilers, or vehicle fleets from a central control room. Ensure optimal fuel system performance and early leak detection.

Remote Oil Pressure Gauge: Track lubrication and hydraulic oil pressures in machinery, turbines, and industrial equipment. Prevent damage by monitoring pressure trends remotely.

Remote Water Pressure Gauge: Oversee water supply, irrigation, and treatment system pressures from a central station. Ideal for water towers, pump stations, and building management systems.

How Remote Reading Technology Works

This remote reading pressure gauge converts mechanical pressure measurement into a standardized electrical signal:

Pressure Sensing: The Bourdon tube or sensor detects system pressure.
Signal Conversion: An internal transmitter converts the mechanical movement into an electrical signal (e.g., 4-20mA).
Data Transmission: The signal travels via cables to remote displays, PLCs, SCADA systems, or control room indicators.
Dual Monitoring: Local dial provides on-site verification while electrical signal enables remote monitoring and control.

Ready to implement remote pressure monitoring in your facility? Contact our engineering team for application-specific recommendations and integration support.

For technical specifications and system design assistance: Please reach out to our technical support team for detailed specifications and integration guidance.
